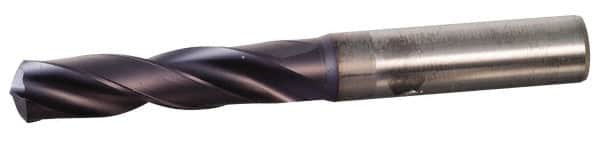

Screw Machine Length Drill Bit: 0.6299″ Dia, 140 °, Solid Carbide Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B976F
Item #: 09591090
Brand: Kennametal
Model #: 1913743
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 4.5280 |
| Series | B976F |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 1.7720 |
| Shank Length (Decimal Inch) | 1.8900 |
| Drill Point Length (mm) | 2.80 |
| Flute Length (Decimal Inch) | 2.5590 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
