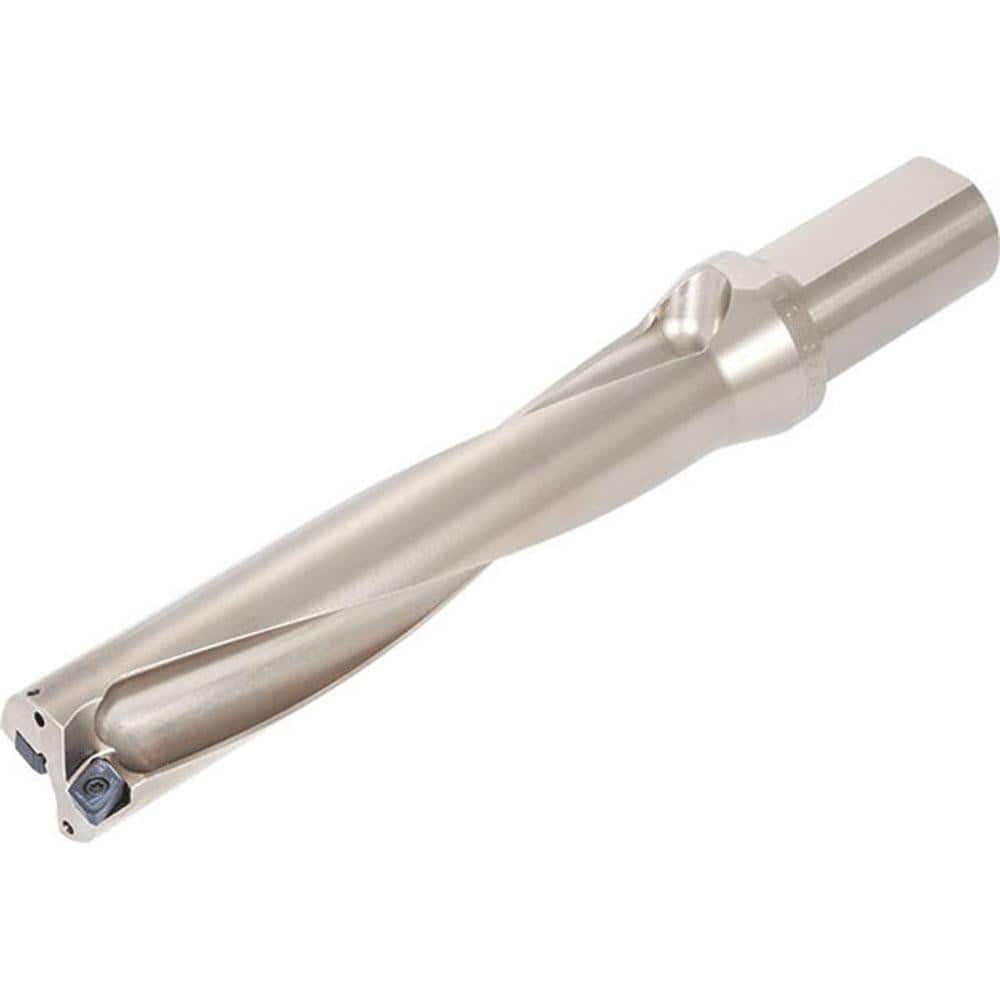

Indexable Insert Drills; Drill Style: TDX; Maximum Drill Diameter (mm): 20.50; Maximum Drill Depth (mm): 103.00; Shank Type: Flatted; Shank Diameter (Inch): 25; Shank Diameter (mm): 25.00; Number of Drill Inserts: 2; Cutting Direction: Right Hand; Maximum
Item #: 09527243
Brand: Tungaloy
Model #: 6718354
Product Specifications
| Drill Style | TDX |
| Maximum Drill Diameter (mm) | 20.50 |
| Maximum Drill Depth (mm) | 103.00 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 25 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | XPMT |
| Compatible Insert Size Code | 06 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 178.00 |
| Series | TDX |
| Flute Length (mm) | 107.00 |
| Body Length | 123.50 |
| Shank Length (mm) | 54.00 |
| Tool Application | Drilling |
| Coolant Through | Yes |
