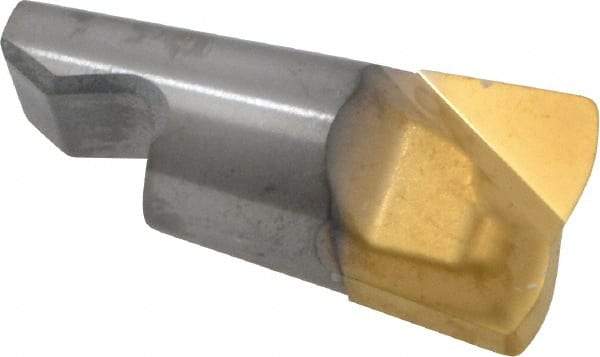

Seco - MM12 MD10 Grade F30M Carbide End Milling Tip Insert - TiAlN/TiN Finish, 2 Flutes, 0.472" Cutting Diam, 0.024" Depth of Cut, 0.401" Extension, 0.256" Cnr Rad
Item #: 09363961
Brand: Seco
Model #: 04593
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM12 |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Material Grade | C5 |
| Manufacturer's Grade | F30M |
| Depth of Cut (Decimal Inch) | 0.0240 |
| Number of Flutes | 2 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | End Mill |
| Corner Radius (Decimal Inch) | 0.2560 |
| Coating Process | PVD |
| Chipbreaker | MD10 |
| Extension From Holder (Decimal Inch) | 0.4010 |
| Style | MM12-12.60-HF-MD10 |
