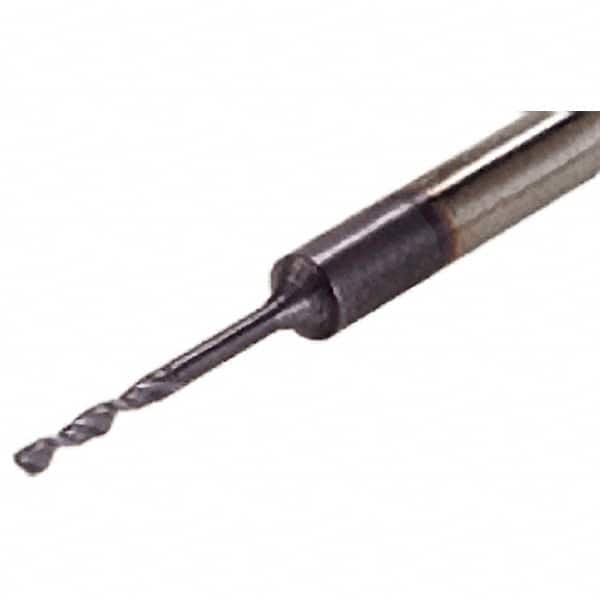

Iscar - 2.7mm 140° Solid Carbide Jobber Drill - TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 60mm OAL, Standard Point
Item #: 09342668
Brand: Iscar
Model #: 5531092
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 2.70 |
| Drill Bit Size (Decimal Inch) | 0.1063 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 16.20 |
| Flute Length (Decimal Inch) | 0.6378 |
| Overall Length (mm) | 60.00 |
| Flute Length x Diameter Ratio | 4xD |
| Point Type | Standard |
| Shank Diameter (mm) | 3.00 |
| Maximum Drilling Depth (mm) | 10.80 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 39.80 |
| Shank Length (Decimal Inch) | 1.5669 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Specification Number | DIN 6537 |
| Material Grade | Submicron |
| Series/List | SCD-AP4 |
