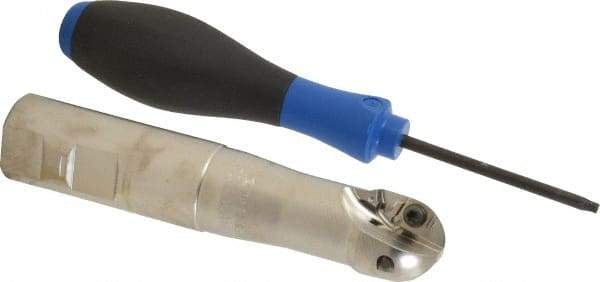

Seco - 1" Cut Diam, 0.86" Max Depth of Cut, 1" Shank Diam, 5.04" OAL, Indexable Ball Nose End Mill - 2" Head Length, Straight Shank, R218.20 Toolholder, 218.20-125.R Insert
Item #: 09293531
Brand: Seco
Model #: 07865
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.8600 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20-125.R |
| Toolholder Style | R218.20 |
| Overall Length (Decimal Inch) | 5.0400 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Maximum RPM | 16900 |
