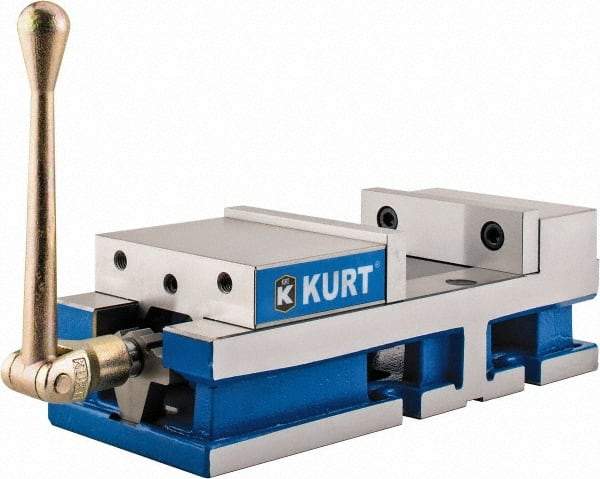

Kurt - 6" Jaw Width, 6" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 6,356 Lb Capacity, 1 Station, 17" Long x 4.6720" High x 1-31/64" Deep, 1.735" Jaw Height, 80 Lb Max Clamp Force
Item #: 09219007
Brand: Kurt
Model #: 3600V
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 6 |
| Throat Depth (Inch) | 1-31/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (Decimal Inch) | 1.7350 |
| Base Length (Decimal Inch) | 15.0600 |
| Precision | Yes |
| Overall Length (Decimal Inch) | 17.0000 |
| Load Capacity (Lb.) | 6356.00 |
| Base Height (Decimal Inch) | 3.1870 |
| Maximum Clamping Force (Ft/Lb) | 80.00 |
| Overall Height (Inch) | 4.6720 |
| Overall Height (Decimal Inch) | 4.9220 |
| Model Number | 3600V |
