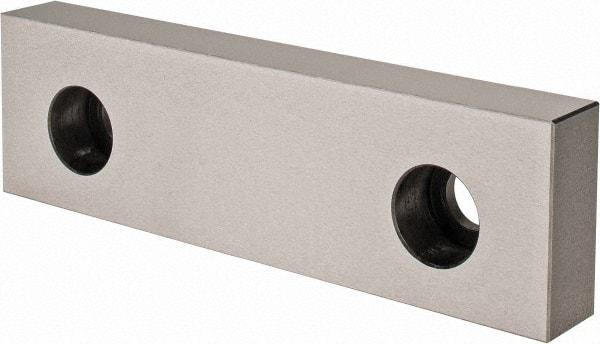

Kurt - 6" Wide x 1-3/4" High x 3/4" Thick, Flat/No Step Vise Jaw - Hard, Steel, Fixed Jaw, Compatible with 6" Vises
Item #: 09211368
Brand: Kurt
Model #: D60-7
Exact Tooling IR#: 04
Features and Benefits
Flat/no step jaws, also known as soft jaws, can be machined to the shape of the part. They are made of soft materials such as aluminum or mild steel.
Hard jaws are made of a case hardened steel and are stepped with gripping faces for securing the work during a machining operation.
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
Fixed or stationary jaw bodies are non-movable and remain in a fixed position on the vise bed. Jaw plates are mounted to the jaw body.
| Product Specifications | |
|---|---|
| Jaw Shape | Flat/No Step |
| Jaw Width (Inch) | 6 |
| Jaw Width (Decimal Inch) | 5.9688 |
| Jaw Height (Inch) | 1-3/4 |
| Jaw Height (Decimal Inch) | 1.7500 |
| Jaw Thickness (Inch) | 3/4 |
| Jaw Thickness (Decimal Inch) | 0.7500 |
| Hard or Soft | Hard |
| Material | Steel |
| Jaw Movement Type | Fixed |
| Vise Compatibility | 6" Vises |
| Distance Between Mount Hole Centers (Decimal Inch) | 3.8750 |
| Model Number | D60 |
