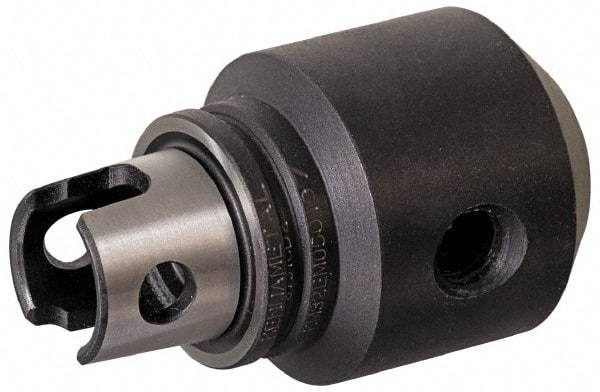

Kennametal - KM80ATC Modular Connection 1-1/2" Hole End Mill Holder/Adapter - 2-3/4" Nose Diam, 97mm Projection, Through-Spindle Coolant
Item #: 09164690
Brand: Kennametal
Model #: 1961336
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | KM80ATC |
| Hole Diameter (Inch) | 1-1/2 |
| Nose Diameter (Inch) | 2-3/4 |
| Projection (mm) | 97.00 |
| Projection (Decimal Inch) | 3.8190 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.9300 |
| Overall Length (Decimal Inch) | 5.5910 |
| Coolant Type | Through-Spindle |
