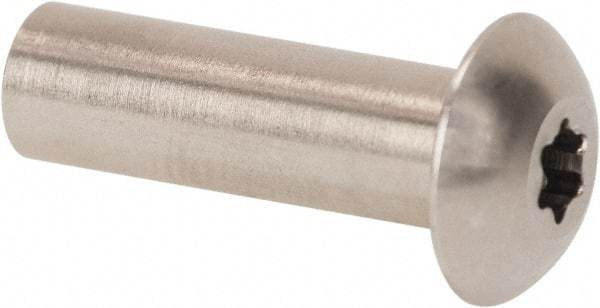

Made in USA - 1/4-20 Thread Barrel, Torx Drive, Stainless Steel Sex Bolt & Binding Post - 3/4" Long Barrel, Grade 18-8
Item #: 09145897
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Torx drive types are also known as star drive fasteners. They have a six-point star recess in the head that increases torque exertion, prevents cam out and boosts fastener life.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Sex Bolt Type | Barrel |
| Drive Type | Torx |
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Barrel Length (Inch) | 3/4 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Thread Standard | UNC |
| Head Diameter (Inch) | 9/16 |
| Head Diameter (Decimal Inch) | 0.5625 |
| Barrel Head Type | Truss |
| Barrel Diameter (Inch) | 5/16 |
| Barrel Thread Depth (Inch) | 3/8 |
| Torx Drive Size | T27 |
