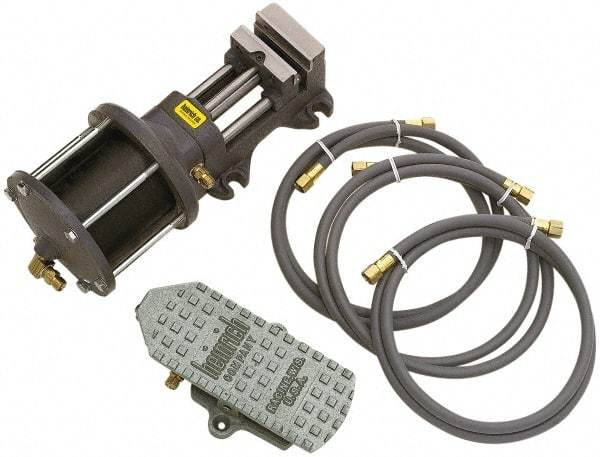

Heinrich - 4" Jaw Width, 5" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Air Operation, 1 Station, 5-3/8" High x 1-5/16" Deep, 13/16" Jaw Height
Item #: 09139247
Brand: Heinrich
Model #: DA-4401-ASSEMBL
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 5 |
| Throat Depth (Inch) | 1-5/16 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Air |
| Jaw Height (Inch) | 13/16 |
| Base Length (Inch) | 18-1/4 |
| Jaw Material | Steel |
| Precision | No |
| Base Width (Inch) | 5-5/8 |
| Base Height (Inch) | 3-3/4 |
| Overall Height (Inch) | 5-3/8 |
