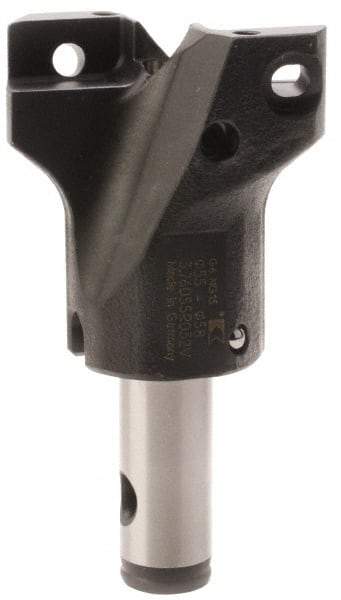

Kennametal - Series HTS DFT, Head Connection 27, 90mm Max Diam Pilot Drill Head - B510S15000 Pilot Drill, 15mm Pilot Drill Diam, 4 Nonpilot Inserts, 70mm Head Length
Item #: 09094285
Brand: Kennametal
Model #: 1191133
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS DFT |
| Head Connection Size | 27 |
| Pilot Type | Pilot Drill |
| Maximum Drill Diameter (mm) | 90.00 |
| Maximum Drill Diameter (Decimal Inch) | 3.5433 |
| Pilot Drill Diameter (mm) | 15.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.5906 |
| Number of Non-Pilot Inserts | 4 |
| Pilot Drill Style | B510S15000 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Drill Head Style | 3.76 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Cartridge |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Back of Head Diameter (mm) | 48.50 |
| Back of Head Diameter (Decimal Inch) | 1.9094 |
| Includes | Adjusting Screw; Clamping screw |
