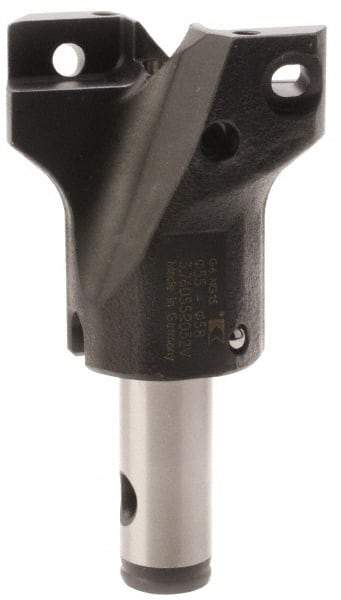

Kennametal - Series HTS DFT, Head Connection 16, 58mm Max Diam Pilot Drill Head - B510S08000 Pilot Drill, 8mm Pilot Drill Diam, 4 Nonpilot Inserts, 60mm Head Length
Item #: 09094251
Brand: Kennametal
Model #: 1191130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS DFT |
| Head Connection Size | 16 |
| Pilot Type | Pilot Drill |
| Maximum Drill Diameter (mm) | 58.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.2835 |
| Pilot Drill Diameter (mm) | 8.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.3150 |
| Number of Non-Pilot Inserts | 4 |
| Pilot Drill Style | B510S08000 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Drill Head Style | 3.76 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Cartridge |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Back of Head Diameter (mm) | 32.50 |
| Back of Head Diameter (Decimal Inch) | 1.2795 |
| Includes | Adjusting Screw; Clamping screw |
