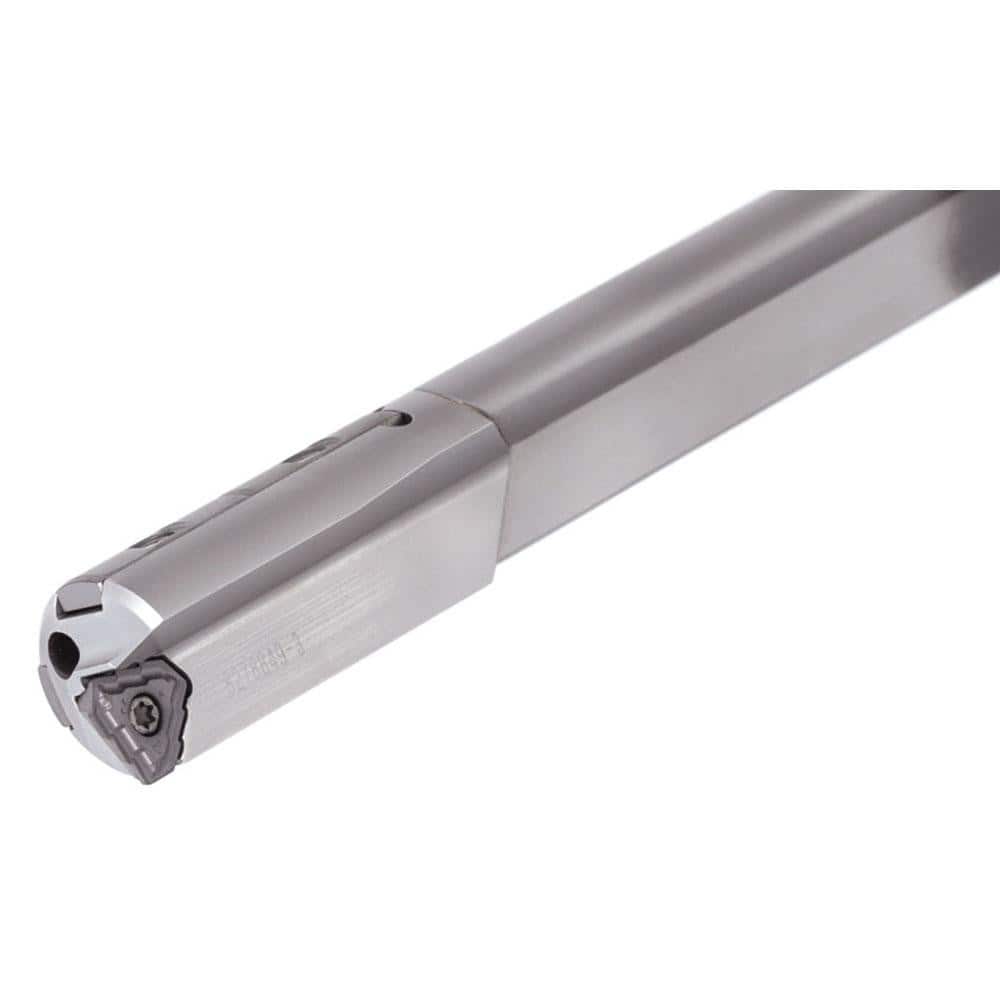

Indexable Insert Drills; Drill Style: TRLGCH; Maximum Drill Diameter (mm): 24.00; Maximum Drill Depth (mm): 1547.40; Shank Type: Whistle Notch; Shank Diameter (Inch): 31-3/4; Shank Diameter (mm): 31.75; Number of Drill Inserts: 1; Cutting Direction: Right
Item #: 09009721
Brand: Tungaloy
Model #: 4842176
Product Specifications
| Drill Style | TRLGCH |
| Maximum Drill Diameter (mm) | 24.00 |
| Maximum Drill Depth (mm) | 1547.40 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 31-3/4 |
| Shank Diameter (mm) | 31.75 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TOHT |
| Compatible Insert Size Code | 11 |
| Drill Depth by Diameter Ratio | 64xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 1653.40 |
| Series | TRLGCH |
| Body Length | 1650.00 |
| Shank Length (mm) | 70.00 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0047 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
