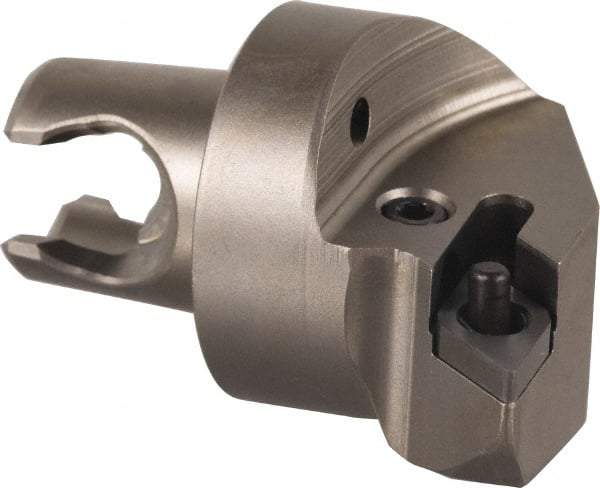

Kennametal - Left Hand Cut, Size KM3225, DN.. Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 30mm Head Length, Through Coolant, Series Kenlever
Item #: 08989584
Brand: Kennametal
Model #: 2527464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM3225 |
| Series Name | Kenlever |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 30.00 |
| Head Length/Projection (Decimal Inch) | 1.1811 |
| Insert Style | DN.. |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Axial Rake Angle | -11 |
| Complete Insert Compatibility | DN.. 332; DN.. 110408 |
