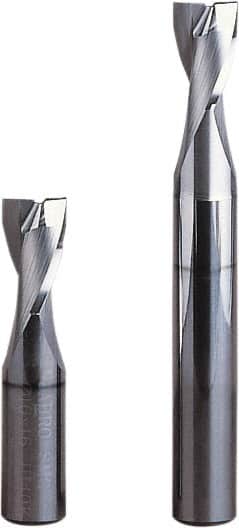

Seco - 2mm, 2 Flute, Single End, Solid Carbide, 0.1mm Corner Radius End Mill - 40mm OAL, 25° Helix, Right Hand Flute, 3mm LOC, Right Hand Cut, 6mm Extended Reach
Item #: 08870255
Brand: Seco
Model #: 08144
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
HEMI is a PVD coating designed for machining, steels, aluminum and copper. HEMI is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 2.00 |
| Mill Diameter (Decimal Inch) | 0.0787 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.100 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | HEMI |
| Length of Cut (mm) | 3.00 |
| Length of Cut (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Overall Length (mm) | 40.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 25.00 |
| Reach Length (mm) | 6.00 |
| Reach Length (Decimal Inch) | 0.2362 |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | -0.02/-0.04 |
| Corner Radius Tolerance (mm) | +0.10/0.00 |
| Extended Reach | Yes |
| TIR Maximum (Decimal Inch) | 0.0004 |
| TIR Maximum (mm) | 0.01 |
