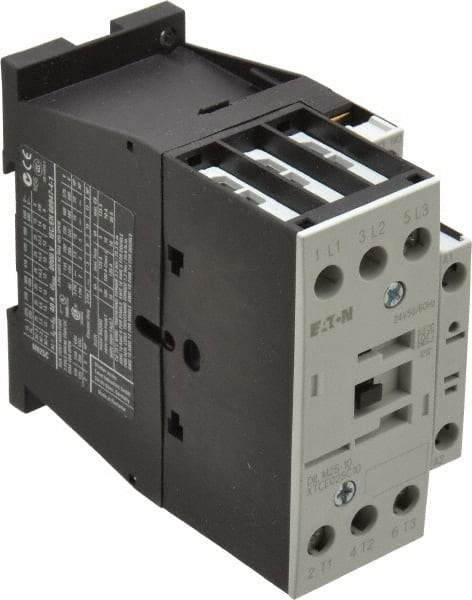

Eaton Cutler-Hammer - 3 Pole, 24 Coil VAC, 40 Amp, Nonreversible Open Enclosure IEC Contactor - 1 Phase hp: 2 at 115 V, 3 at 200 V, 5 at 230 V, 3 Phase hp: 10 at 230 V, 15 at 460 V, 20 at 575 V, 7.5 at 200 V, 25 Amp Inductive Load Rating Listed
Item #: 08804809
Brand: Eaton Cutler-Hammer
Model #: XTCE025C10T
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 24 VAC |
| Amperage | 40 |
| Action | NonReversible |
| Horsepower at 1 Phase | 2 @ 115 V; 3 @ 200 V; 5 @ 230 V |
| Horsepower at 3 Phase | 10 @ 230 V; 15 @ 460 V; 20 @ 575 V; 7.5 @ 200 V |
| Auxiliary Contacts | NO |
| Enclosure Type | Open |
| Overall Height (mm) | 85 |
| Overall Height (Decimal Inch) | 3.4600 |
| Overall Width (mm) | 45 |
| Overall Width (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 138.70 |
| Overall Depth (Decimal Inch) | 5.4600 |
| Inductive Load Rating (A) | 25 |
| Resistive Load Rating (A) | 45 |
| Standards Met | ATEX; CCC; CE Marked; CSA; EN/IEC 60947; RoHS Compliant; UL |
