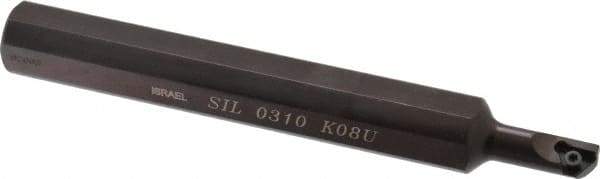

Carmex - Internal Thread, Left Hand Cut, 5/8" Shank Width x 5/8" Shank Height Indexable Threading Toolholder - 5" OAL, 08U IR/L Insert Compatibility, SI Toolholder, Series SIL
Item #: 08716078
Brand: Carmex
Model #: SIL0310K08U
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | 08U IR/L |
| Series | SIL |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3540 |
| Center to Cutting Edge (Decimal Inch) | 0.2600 |
| Neck Diameter (Decimal Inch) | 0.2900 |
| Head Length (Decimal Inch) | 0.8300 |
| Insert Inscribed Circle (Inch) | 3/16 |
