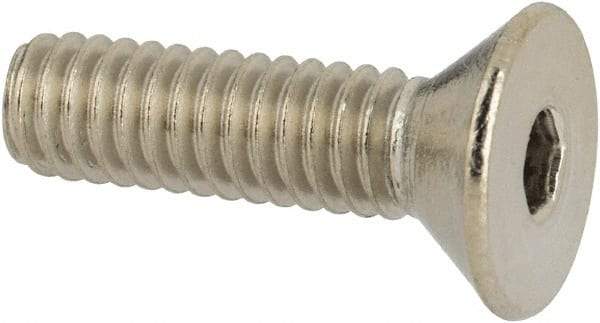

Value Collection - #8-32 UNC Hex Socket Drive, 82° Flat Screw - Grade 316 Stainless Steel, 5/8" OAL
Item #: 08704017
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Flat head types have flat surfaces that taper toward the screw body to allow for countersinking. The flat head lies flush against the workpiece.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | 82 Degree Flat |
| Drive Type | Hex Socket |
| Thread Size (Inch) | #8-32 |
| Length Measurement Type | Overall Length |
| Length (Inch) | 5/8 |
| Material | Stainless Steel |
| Thread Standard | UNC |
| Hex Key Size (Inch) | 9/64 |
| Hex Key Size (Decimal Inch) | 0.1406 |
| Material Grade | 316 |
