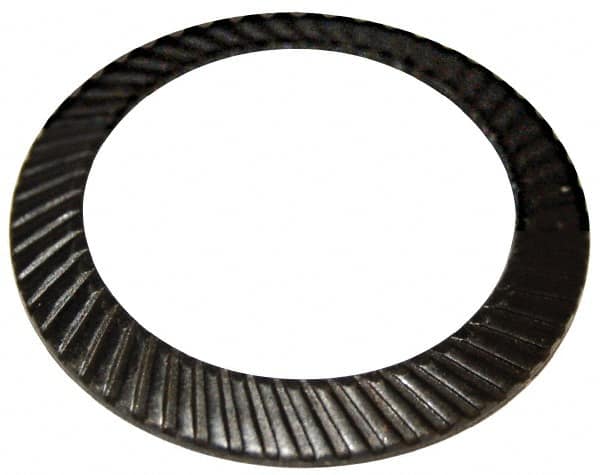

Gardner Spring - 0.591" ID, Steel, Belleville Disc Spring - 0.866" OD, 0.079" High, 0.047" Thick
Item #: 08661423
Brand: Gardner Spring
Model #: MS 14
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.5910 |
| Material | Steel |
| Outside Diameter (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.0470 |
| Overall Height (Decimal Inch) | 0.0790 |
| Serration Type | Top Only |
