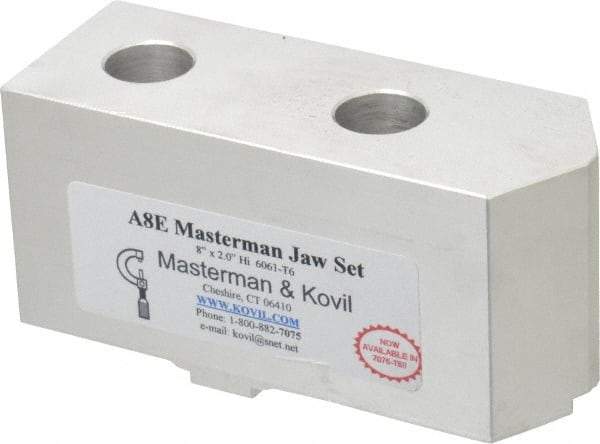

Masterman & Kovil - 8" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - 1 Jaw, Aluminum, 1-3/4" Btw Mount Hole Ctrs, 4mm Long x 1-1/2" Wide x 2" High, 5/16" Groove
Item #: 08637274
Brand: Masterman & Kovil
Model #: A8E
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Aluminum |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Inch) | 2 |
| Groove Width (Decimal Inch) | 0.3130 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.7500 |
| Jaw End Shape | Pointed |
| Fastener Size (Inch) | 3/8 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Material Grade | 6061-T6 |
