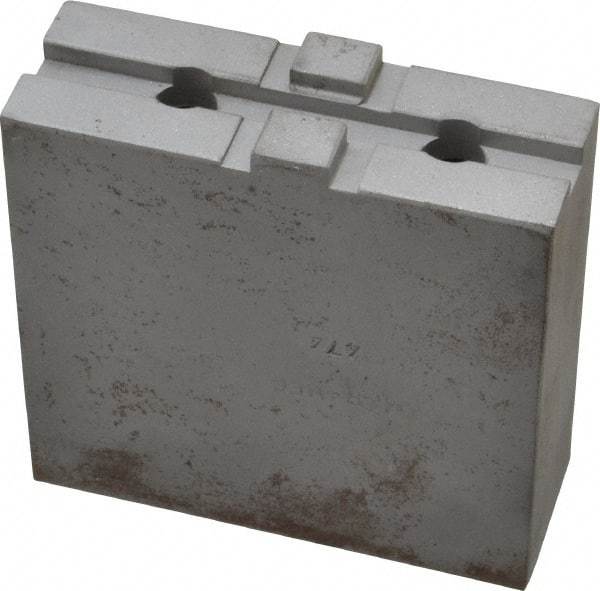

H & R Manufacturing - 8" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Steel, 1-3/4" Btw Mount Hole Ctrs, 3-1/2" Long x 1-1/4" Wide x 3-3/8" High, 5/16" Groove
Item #: 08588089
Brand: H & R Manufacturing
Model #: HR-474
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Inch) | 3-3/8 |
| Overall Height (Decimal Inch) | 1.6250 |
| Groove Width (Decimal Inch) | 0.3130 |
| Distance Between Mount Hole Centers (Inch) | 1-3/4 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.7500 |
| Tongue Width (Decimal Inch) | 0.5000 |
| Fastener Size (Inch) | 3/8 |
| Overall Width/Diameter (Inch) | 1-1/4 |
| Overall Length (Inch) | 3-1/2 |
| Material Grade | 1018 |
