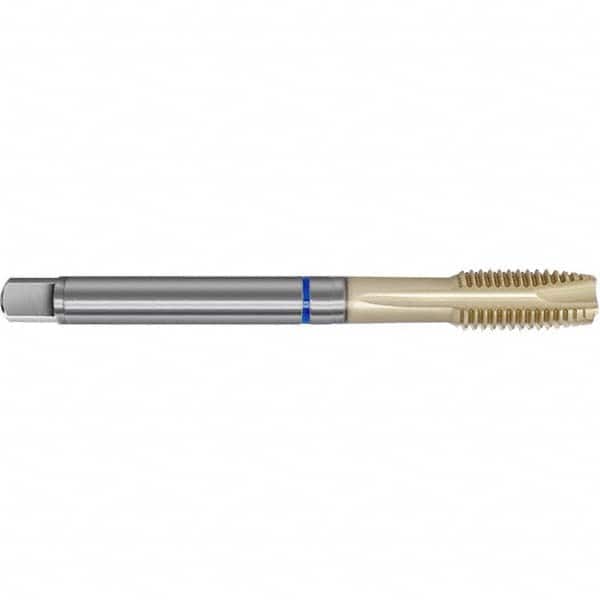

Guhring - Spiral Point Taps Thread Size (mm): M8x1.00 Number of Flutes: 3
Item #: 12269353
Brand: Guhring
Model #: 9046470080050
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered metal high speed steel is durable and wear resistant material used in general purpose applications. It is commonly used on low-carbon alloys and mild steels.
Product Specifications
Spiral Point Taps; Thread Size (mm): M8x1.00 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6HX ; Thread Limit: D4/D5 ; Finish/Coating: Sirius
| Thread Size (mm) | M8x1.00 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Thread Limit | D4/D5 |
| Finish/Coating | Sirius |
| Material | Powdered Metal High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Thread Standard | Metric Fine |
| Series/List | 4647 |
| Shank Diameter (mm) | 6.00 |
| Square Size (mm) | 4.90 |
