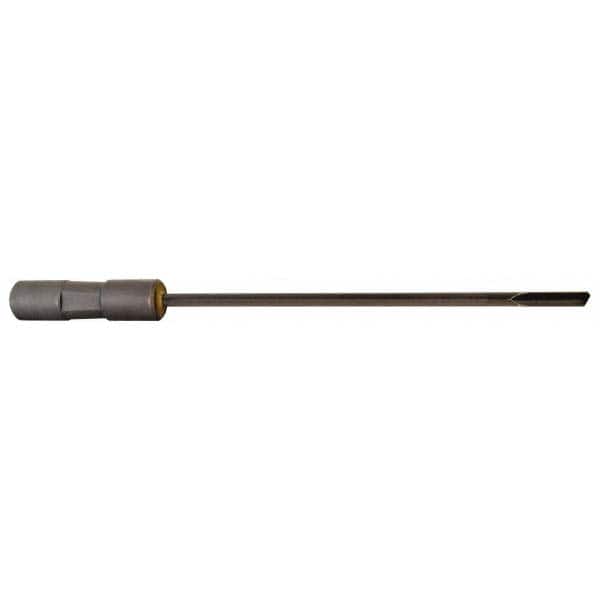

Die Drill Bit: 13/32″ Dia, 115 °, Solid Carbide Uncoated, 6″ Flute, 10″ OAL
Item #: 08534851
Brand: Made in USA
Model #: 100287SR
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.4063 in; 0.4063 |
| Drill Size (Inch) | 13/32 |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Inch) | 6; 6 in |
| Flute Length (Decimal) | 6.0000 |
| Depth of Cut (Decimal) | 7.0000 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Round |
| Shank Diameter (Inch) | 3/4; 3/4 in |
| Shank Diameter (Decimal) | 3/4 in |
| Shank Length (Metric) | 4 in |
| Shank Length (Inch) | 4 |
| Shank Length (Decimal) | 4.0000 |
| Point Type | N-8 Nosegrind |
| Drill Point Angle | 115 |
| OverallLength (Decimal) | 10.0000; 10 in |
| Overall Length (Inch) | 10 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Contour Style | R-1 Low Land |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Drill Diameter Tolerance (Metric) | +0.0005 to -0.0005 in; +0.0127 to -0.0127 |
| Web Thinning | Web-Thinned |
| Driver Length (Inch) | 2-3/4 |
| Driver Diameter (Inch) | 0.75 in; 3/4 |
