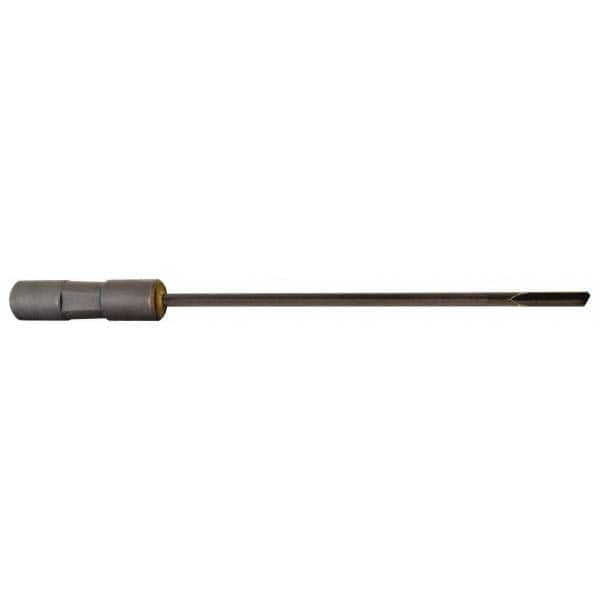

Die Drill Bit: 7/32″ Dia, 115 °, Solid Carbide Uncoated, 24″ Flute, 28″ OAL
Item #: 08533515
Brand: Made in USA
Model #: 112810SK
Product Specifications
| DrillType | Straight-Flute; Single Flute Gun |
| Drill Size (Decimal) | 0.2188; 0.2188 in |
| Drill Size (Inch) | 7/32 |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Inch) | 24; 24 in |
| Flute Length (Decimal) | 24.0000 |
| Depth of Cut (Decimal) | 25.0000 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Round |
| Shank Diameter (Inch) | 3/4; 3/4 in |
| Shank Diameter (Decimal) | 3/4 in |
| Shank Length (Metric) | 4 in |
| Shank Length (Inch) | 4 |
| Shank Length (Decimal) | 4.0000 |
| Point Type | N-8 Nosegrind |
| Drill Point Angle | 115 |
| OverallLength (Decimal) | 28 in; 28.0000 |
| Overall Length (Inch) | 28 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Contour Style | R-1 Low Land |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Drill Diameter Tolerance (Metric) | +0.0005 to -0.0005 in; +0.0127 to -0.0127 |
| Web Thinning | Web-Thinned |
| Driver Length (Inch) | 2-3/4 |
| Driver Diameter (Inch) | 0.75 in; 3/4 |
