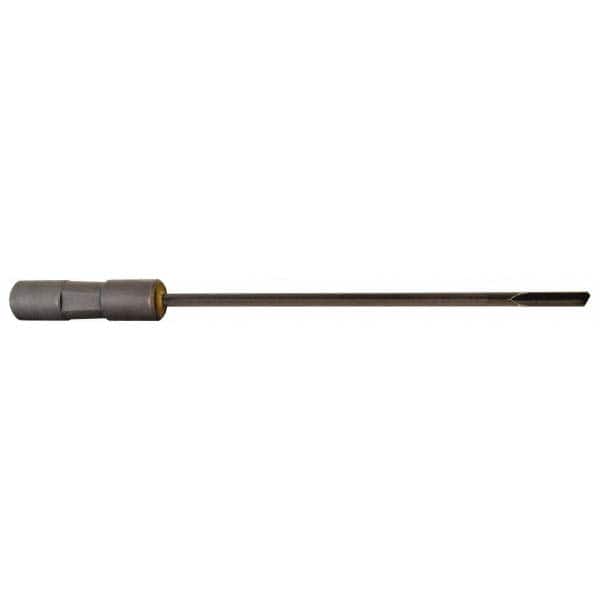

Die Drill Bit: 0.1910″ Dia, 115 °, Carbide Tipped Bright Finish, 18″ Flute, 22″ OAL
Item #: 08533242
Brand: Made in USA
Model #: 100108SK
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Wire) | #11 |
| Drill Size (Decimal) | 0.1910; 0.191 in |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Inch) | 18 in; 18 |
| Flute Length (Decimal) | 18.0000 |
| Depth of Cut (Decimal) | 19.0000 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Round |
| Shank Diameter (Inch) | 3/4; 3/4 in |
| Shank Diameter (Decimal) | 3/4 in |
| Point Type | N-8 Nosegrind |
| Drill Point Angle | 115 |
| OverallLength (Decimal) | 22 in; 22.0000 |
| Overall Length (Inch) | 22 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Contour Style | R-1 Low Land |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Drill Diameter Tolerance (Metric) | +0.0005 to -0.0005 in; +0.0127 to -0.0127 |
| Web Thinning | Web-Thinned |
| Driver Length (Inch) | 2-3/4 |
