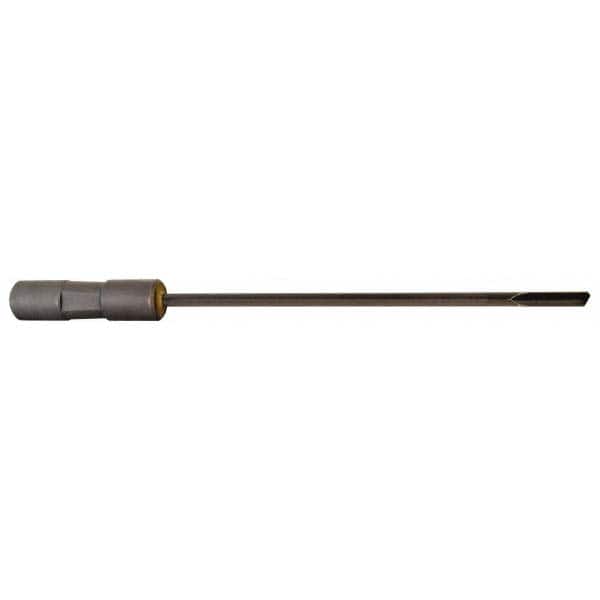

Die Drill Bit: 0.1770″ Dia, 115 °, Carbide Tipped Bright Finish, 12″ Flute, 16″ OAL
Item #: 08533036
Brand: Made in USA
Model #: 100085SK
Product Specifications
| DrillType | Single Flute Gun |
| Drill Size (Wire) | #16 |
| Drill Size (Decimal) | 0.177 in; 0.1770 |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Inch) | 12; 12 in |
| Flute Length (Decimal) | 12.0000 |
| Depth of Cut (Decimal) | 13.0000 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Round |
| Shank Diameter (Inch) | 3/4; 3/4 in |
| Shank Diameter (Decimal) | 3/4 in |
| Point Type | N-8 Nosegrind |
| Drill Point Angle | 115 |
| OverallLength (Decimal) | 16 in; 16.0000 |
| Overall Length (Inch) | 16 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Contour Style | R-1 Low Land |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Drill Diameter Tolerance (Metric) | +0.0005 to -0.0005 in; +0.0127 to -0.0127 |
| Web Thinning | Web-Thinned |
| Driver Length (Inch) | 2-3/4 |
