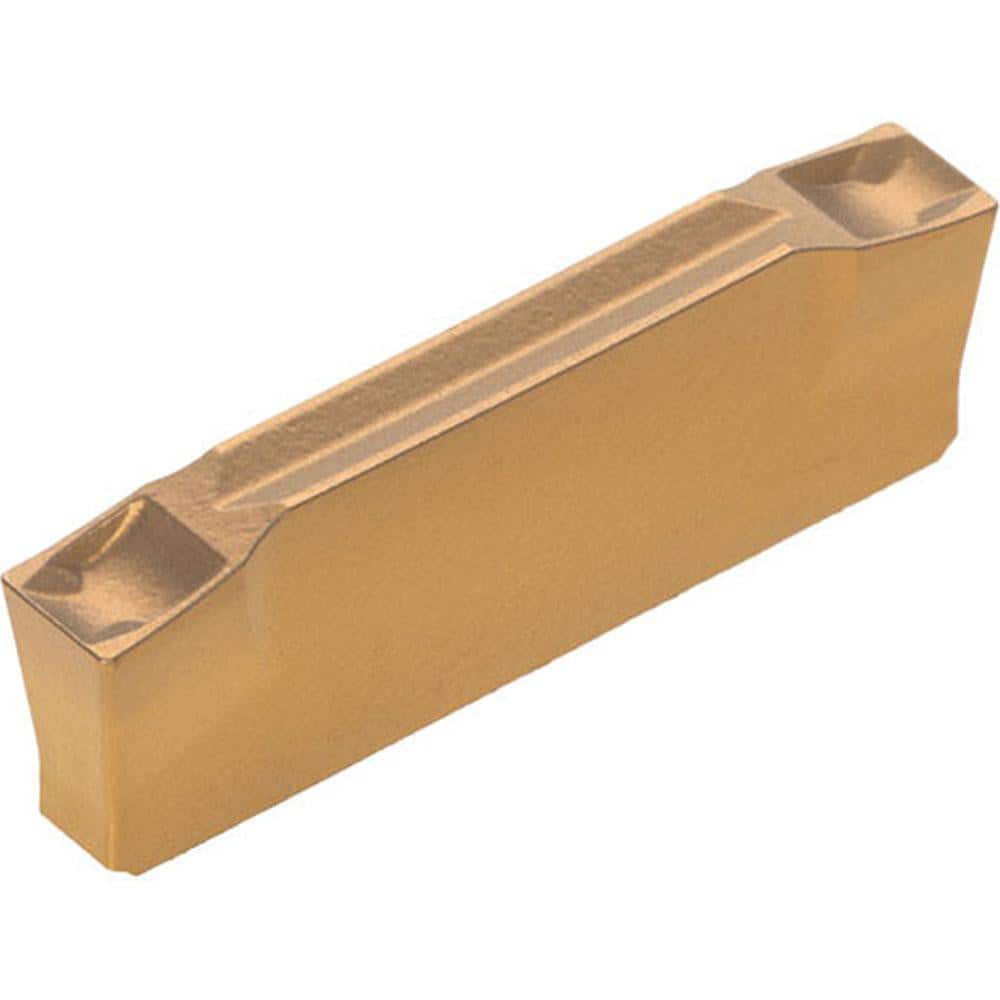

Grooving Insert: WGEGE NS9530, Cermet Uncoated, Neutral, 0.079″ Cutting Width, Series WGE
Item #: 08464513
Brand: Tungaloy
Model #: 6705503
Product Specifications
| Insert Style | WGE |
| Insert Size Code | 2 |
| Insert Material | Cermet |
| Manufacturer Grade | NS9530 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | WGE |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Chip Breaker | GE |
| Coating/Finish | Uncoated |
