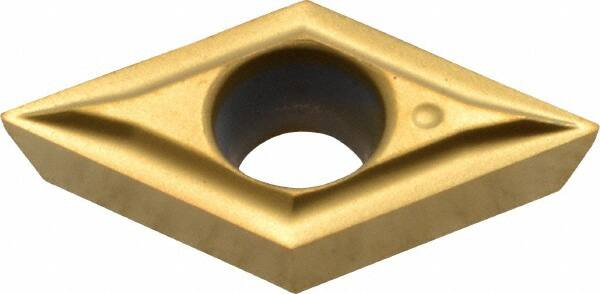

Kennametal - DPGT21.50 LF Grade KC730 Carbide Turning Insert - TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.0039" Corner Radius
Item #: 08441651
Brand: Kennametal
Model #: 1161933
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPGT |
| Insert Size | 21.50 |
| Material | Carbide |
| Length (mm) | 7.75 |
| Length (Decimal Inch) | 0.3051 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | KC730 |
| Coating | TiN |
| Material Grade | C2/C3/C4 |
| Chip Breaker | LF |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Rake Angle | 5 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S; M |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
