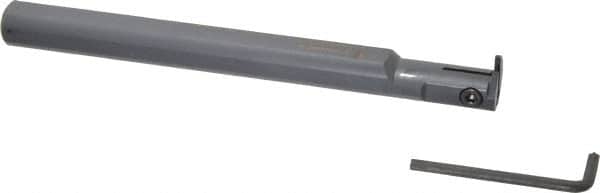

Kennametal - A-A4E, Internal, Right Hand, 0.276" Max Depth of Cut, 0.118" Min Groove Width, Indexable Grooving Tool Holder - A4..03.. Insert Compatibility, 19.05mm Shank Width, 203.2mm OAL, Through Coolant
Item #: 08429490
Brand: Kennametal
Model #: 1953335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | A-A4E |
| Insert Compatibility | A4..03.. |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | A4 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9840 |
| Maximum Hole Depth (Decimal Inch) | 1.5700 |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5118 |
| Center to Cutting Edge (Decimal Inch) | 0.5120 |
| Toolholder Material | Steel |
