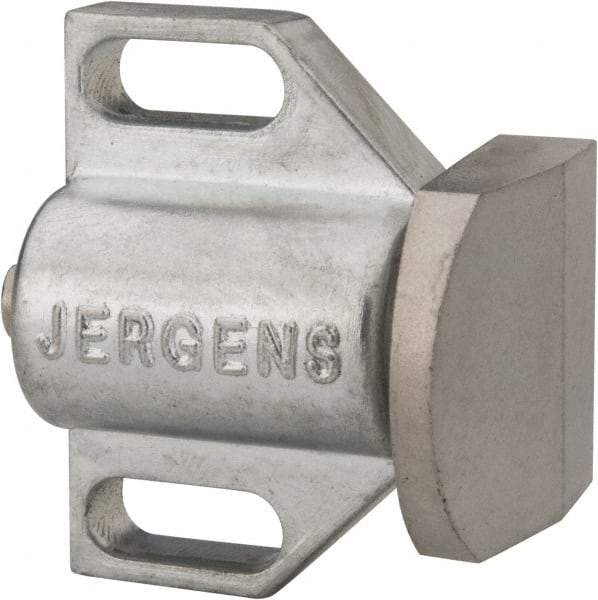

Jergens - 1-1/2" Body Width x 1" Body Len, 3/16" Stroke Len, 1-1/8" Btw Mt Hole Ctrs, Tangless Square Spring Locating Stop - 32 Lb Init End Force, 14 Lb Mid End Force, 32 Lb Final End Force, 1-1/8" Stop Head Width x 1-1/8" Stop Head Height
Item #: 08419087
Brand: Jergens
Model #: 36111
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Width (Inch) | 1-1/8 |
| Stroke Length (Inch) | 3/16 |
| Base Width (Inch) | 1-1/2 |
| Body Length (Inch) | 1 |
| Stop Head Height (Inch) | 1-1/8 |
| Distance Between Mount Hole Centers (Inch) | 1-1/8 |
| Tang Profile | Tangless |
| Initial End Force (Lb.) | 32.00 |
| Middle End Force (Lb.) | 14.00 |
| Middle End Force (kg) | 6.35 |
| Final End Force (Lb.) | 32.00 |
| Stop Head Thickness (Inch) | 1/4 |
| Body Width (Inch) | 1-1/2 |
| Distance Betw. Button & Bottom Edge (Inch) | 5/16 |
| Mounting Slot Length (Decimal Inch) | 0.5400 |
| Mounting Slot Width (Decimal Inch) | 0.2000 |
| Base Thickness (Inch) | 1/4 |
| Body Material | Zinc Aluminum Alloy |
| Stop Material | Low Carbon Steel |
