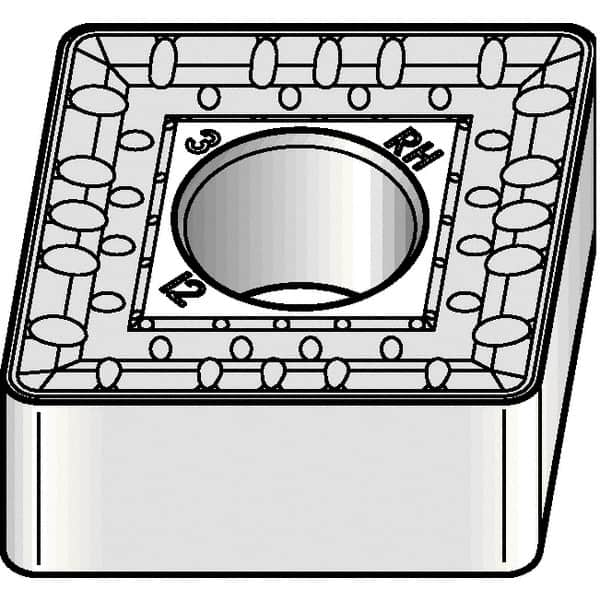

Kennametal - CNMM643 RH Grade KCP40 Carbide Turning Insert - TiN/TiCN/Al2O3 Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 08340333
Brand: Kennametal
Model #: 3754815
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 643 |
| Material | Carbide |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7614 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KCP40 |
| Coating | TiN/TiCN/Al2O3 |
| Material Grade | C5/C6 |
| Chip Breaker | RH |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| Rake | Positive |
| Rake Angle | 20 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
