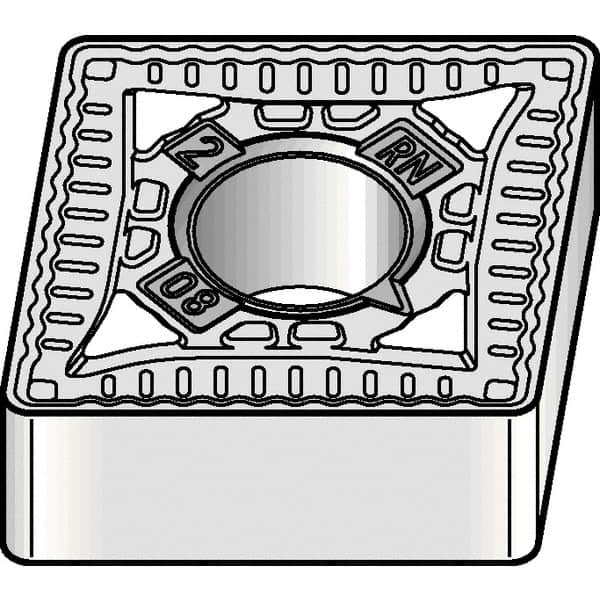

Kennametal - CNMG646 RN Grade KCP30 Carbide Turning Insert - TiN/TiCN/Al2O3 Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 3/32" Corner Radius
Item #: 08338063
Brand: Kennametal
Model #: 3753633
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 646 |
| Material | Carbide |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7614 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | KCP30 |
| Coating | TiN/TiCN/Al2O3 |
| Material Grade | C5/C6 |
| Chip Breaker | RN |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
