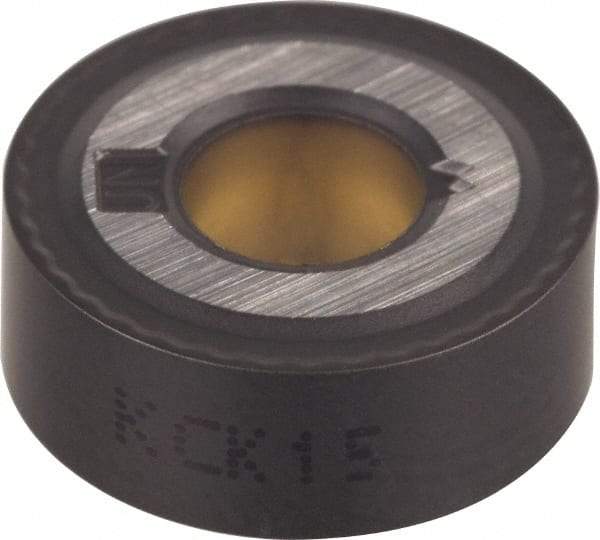

Kennametal - RNMG86 RN Grade KCP10 Carbide Turning Insert - TiCN/Al2O3 Finish, Round, 1" Inscr Circle, 3/8" Thick
Item #: 08337016
Brand: Kennametal
Model #: 3753311
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 86 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | KCP10 |
| Coating | TiCN/Al2O3 |
| Material Grade | C3/C7 |
| Chip Breaker | RN |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
