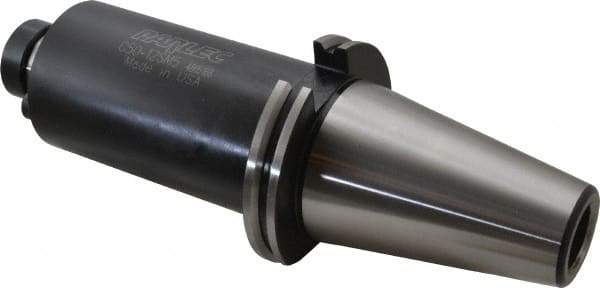

Parlec - CAT50 Taper Shank 1-1/4" Pilot Diam Shell Mill Holder - 5-1/2" Flange to Nose End Projection, 2-3/4" Nose Diam, 5/8-18 Lock Screw
Item #: 08147415
Brand: Parlec
Model #: C50-12SM5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Pilot Diameter (Inch) | 1-1/4 |
| Pilot Diameter (Decimal Inch) | 1.2500 |
| Projection Flange to Nose End (Decimal Inch) | 5.5000 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 2.7500 |
| Balanced to (RPM) | 30000 |
| Shell Mill Cutting Diameter Range (Inch) | 3 - 3-1/2 |
| TIR (Decimal Inch) | 0.0002 |
| Lock Screw Thread Size | 5/8-18 |
