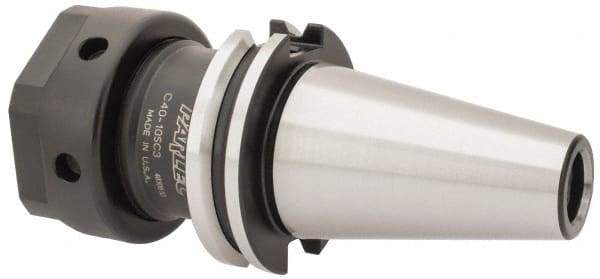

Parlec - 1/32" to 1" Capacity, 3" Projection, CAT40 Taper Shank, TG/PG 100 Collet Chuck - 5.687" OAL
Item #: 08144180
Brand: Parlec
Model #: C40-10SC3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 100 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/32 |
| Minimum Collet Capacity (Decimal Inch) | 0.0310 |
| Minimum Collet Capacity (mm) | 0.79 |
| Maximum Collet Capacity (mm) | 25.40 |
| Maximum Collet Capacity (Inch) | 1 |
| Maximum Collet Capacity (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.6870 |
| Nose Diameter (Decimal Inch) | 2.4400 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
