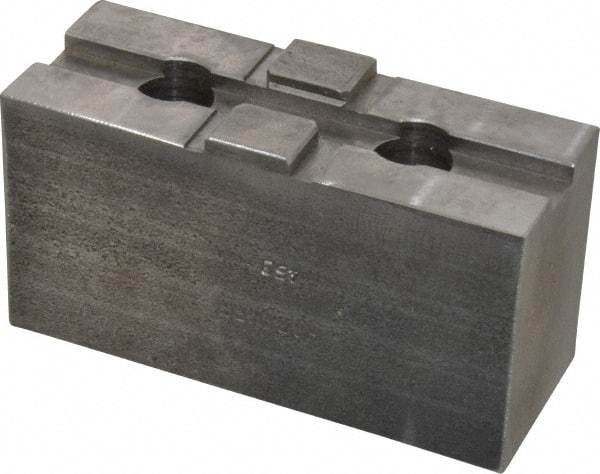

H & R Manufacturing - 10" Chuck Capacity, Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Steel, 2.12" Btw Mount Hole Ctrs, 4-1/2" Long x 1-3/4" Wide x 2-3/8" High, 1/2" Groove
Item #: 08120818
Brand: H & R Manufacturing
Model #: HR-453
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (Inch) | 2-3/8 |
| Groove Width (Decimal Inch) | 0.5000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 2.1200 |
| Tongue Width (Decimal Inch) | 0.7500 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 5/8 |
| Overall Width/Diameter (Inch) | 1-3/4 |
| Overall Length (Inch) | 4-1/2 |
| Material Grade | 1018 |
