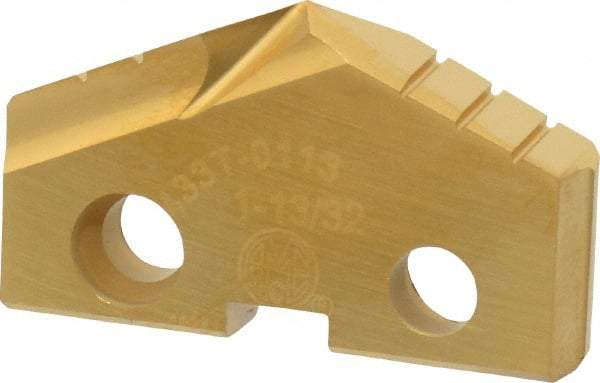

Allied Machine and Engineering - 1-13/32" Diam x 1/4" Thick, Seat Code 3, 132° Included Angle Spade Drill Insert - TiN Coated, High Speed Steel, Series GEN2 T-A
Item #: 08071409
Brand: Allied Machine and Engineering
Model #: 433T-0113
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Series Name | GEN2 T-A |
| Diameter (Decimal Inch) | 1.4063 |
| Diameter (Inch) | 1-13/32 |
| Diameter (mm) | 35.72 |
| Series Code/Seat Size | 3 |
| Material | High Speed Steel |
| Coating | TiN |
| Thickness (Decimal Inch) | 0.2500 |
| Included Angle Degree | 132 |
| Material Grade | M4 |
