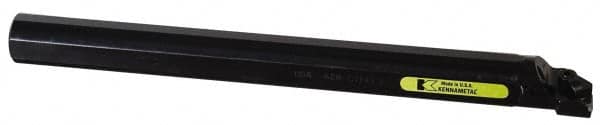

Kennametal - 48mm Min Bore Diam, 400mm OAL, 40mm Shank Diam, A-CTFP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 08042921
Brand: Kennametal
Model #: 1886494
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CTFP |
| Series | Kendex |
| Minimum Bore Diameter (mm) | 48.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.8898 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 400.00 |
| Overall Length (Decimal Inch) | 15.7480 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5750 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TP.. 160308 |
| Toolholder Material | Steel |
