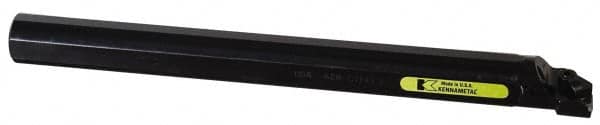

Kennametal - 20mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, A-CTFP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 08042905
Brand: Kennametal
Model #: 1886492
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Toolholder Style | A-CTFP |
Series | Kendex |
Minimum Bore Diameter (mm) | 20.00 |
Minimum Bore Diameter (Decimal Inch) | 0.7874 |
Hand of Holder | Right Hand |
Overall Length (mm) | 200.00 |
Overall Length (Decimal Inch) | 7.8740 |
Shank Diameter (mm) | 16.00 |
Shank Diameter (Decimal Inch) | 0.6300 |
Insert Compatibility | TP.. |
Through Coolant | Yes |
Multi-Use Tool | No |
Insert Holding Method | Clamp |
Rake | Positive |
Insert Thickness (Inch) | 1/8 |
Insert Inscribed Circle (Inch) | 1/4 |
Rake Angle | 5 |
Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
Complete Insert Compatibility | TP.. 110304 |
Toolholder Material | Steel |
