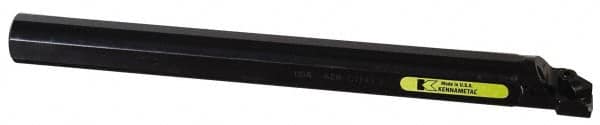

Kennametal - 60.96mm Min Bore Diam, 21-1/2" OAL, 2" Shank Diam, B-CTFP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 08042574
Brand: Kennametal
Model #: 1095836
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | B-CTFP |
| Series | Kendex |
| Minimum Bore Diameter (mm) | 60.96 |
| Minimum Bore Diameter (Decimal Inch) | 2.4000 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 21-1/2 |
| Overall Length (Decimal Inch) | 21.5000 |
| Shank Diameter (mm) | 50.80 |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | TP.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Center to Cutting Edge (Decimal Inch) | 1.2810 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Complete Insert Compatibility | TP.. 432 |
| Toolholder Material | Steel |
