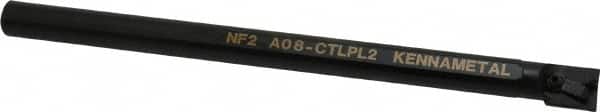

Kennametal - 15.24mm Min Bore Diam, 8" OAL, 1/2" Shank Diam, A-CTLP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 08042475
Brand: Kennametal
Model #: 1094907
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CTLP |
| Series | Kendex |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Complete Insert Compatibility | TP.. 221 |
| Toolholder Material | Steel |
