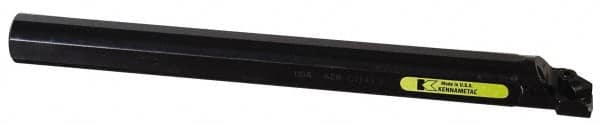

Kennametal - 44.7mm Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-CTFP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 08042335
Brand: Kennametal
Model #: 1094889
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CTFP |
| Series | Kendex |
| Minimum Bore Diameter (mm) | 44.70 |
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 355.60 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TP.. 432 |
| Toolholder Material | Steel |
