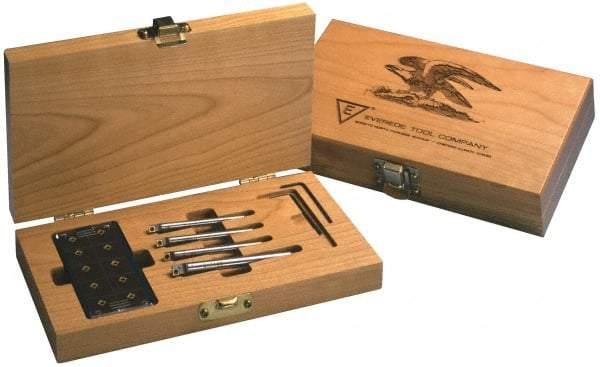

Everede Tool - 0.18" Min Diam Smallest Bar, 0.29" Min Diam Largest Bar, Carbide Indexable Boring Bar Set - CDCD Insert, 4" Max Bore Depth
Item #: 08035818
Brand: Everede Tool
Model #: SET 1C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Bore Diameter - Smallest Bar (Decimal Inch) | 0.1800 |
| Minimum Bore Diameter - Largest Bar (Decimal Inch) | 0.2900 |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Insert Style | CDCD |
| Series | A |
| Shank Diameter (Decimal Inch) | 0.1560; 0.2500; 0.187 (2) |
| Number of Toolholders Included in Order | 4 |
| Maximum Bore Depth (Inch) | 4.0000 |
| Lead Angle | 5 |
| Minimum Bore Diameter (Decimal Inch) | 0.1800; 0.2080; 0.2300; 0.2900 |
| Complete Insert Compatibility | CDCD 07 CVM2 |
| Case Material | Case Not Included |
