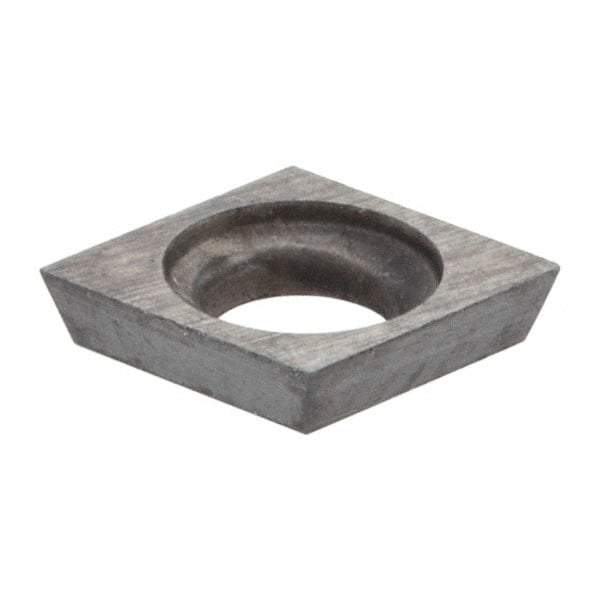

Everede Tool - CDCD07 Grade CS2 Carbide Boring Insert - Uncoated, 80° Diamond, 15° Relief Angle, 5/32" Inscr Circle, 0.04" Thick, 0.007" Corner Radius
Item #: 08033029
Brand: Everede Tool
Model #: CDCD-07-CS2
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CDCD |
| Insert Size | 07 |
| Material Grade | C2 |
| Manufacturer's Grade | CS2 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0400 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating | Uncoated |
| Relief Angle | 15 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
