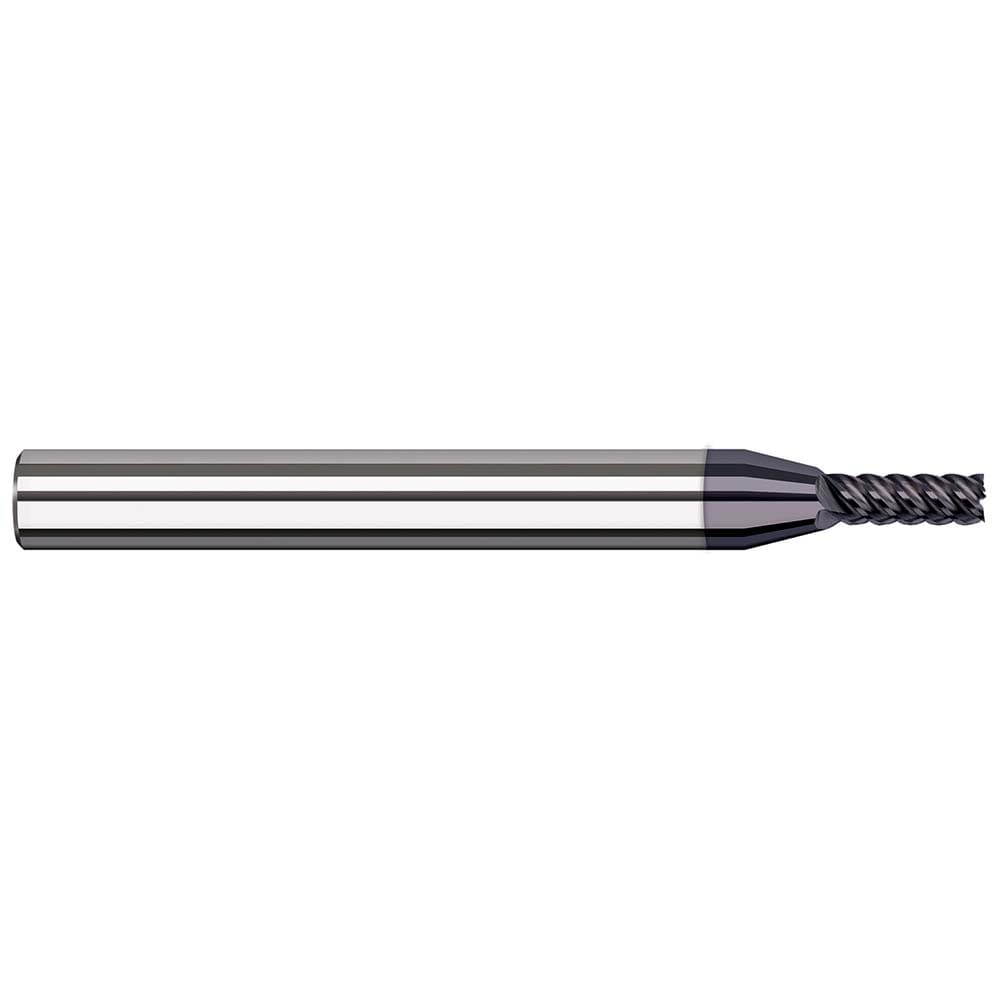

Square End Mill: 3/32" Dia, 5 Flute, Solid Carbide
Item #: 30195309
Brand: Harvey Tool
Model #: 967893-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0930 |
| Mill Diameter (Inch) | 3/32 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.2790 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 47 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Coating/Finish | AlTiN |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Series | Variable Helix End Mills for Free Machining Steels - Finishers - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
