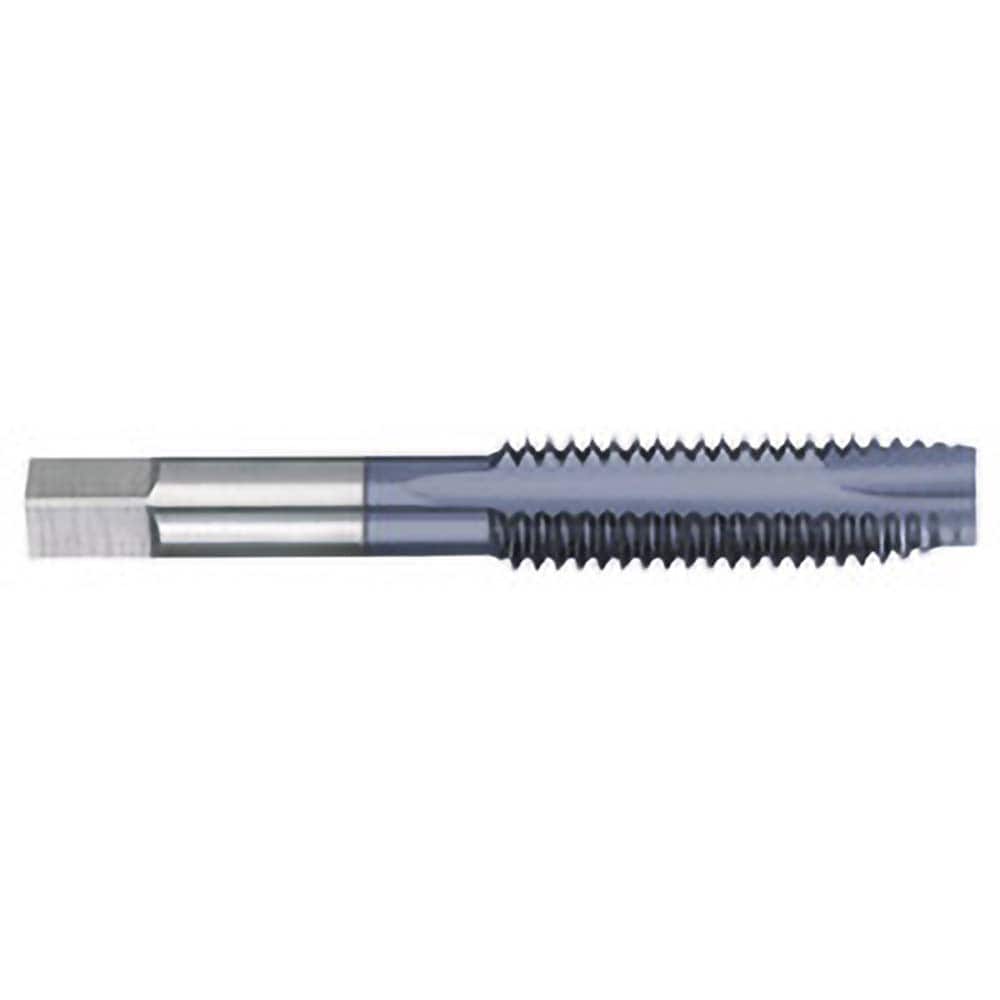

Titan USA - Spiral Point Taps; Thread Size (Inch): 3/8-24 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: AlTiN
Item #: 07975758
Brand: Titan USA
Model #: TT98016
Product Specifications
Spiral Point Taps; Thread Size (Inch): 3/8-24 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: AlTiN
| Thread Size (Inch) | 3/8-24 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Finish/Coating | AlTiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.9375 |
| Overall Length (Inch) | 2-15/16 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (Inch) | 1-1/4 |
| Series/List | 762 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (Inch) | 7/16 |
| Square Size (Decimal Inch) | 0.2860 |
