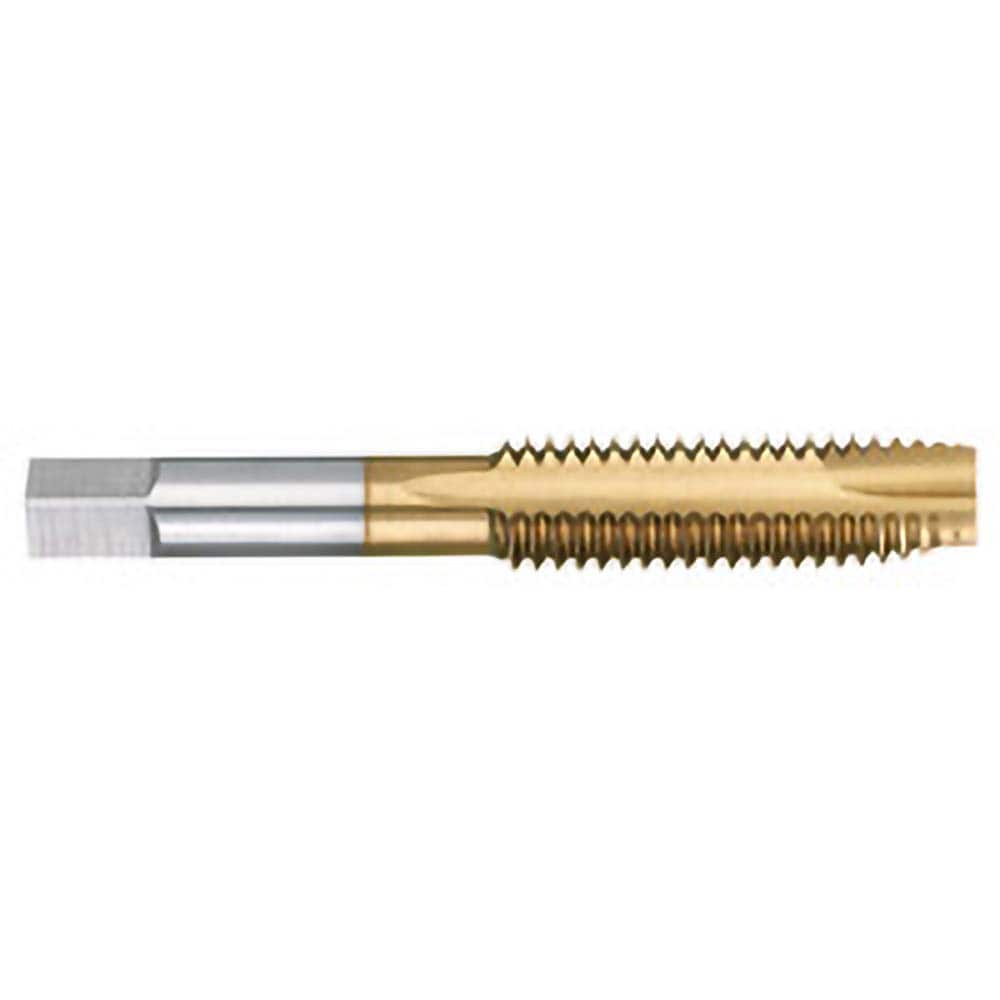

Titan USA - Spiral Point Taps; Thread Size (mm): M20x2.50 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D7 ; Finish/Coating: TiN
Item #: 07974264
Brand: Titan USA
Model #: TT93277TIN
Product Specifications
Spiral Point Taps; Thread Size (mm): M20x2.50 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D7 ; Finish/Coating: TiN
| Thread Size (mm) | M20x2.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D7 |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.4688 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 2.0000 |
| Thread Length (Inch) | 2 |
| Series/List | 882 |
| Shank Diameter (Decimal Inch) | 0.6520 |
| Square Length (Inch) | 11/16 |
| Square Size (Decimal Inch) | 0.4890 |
