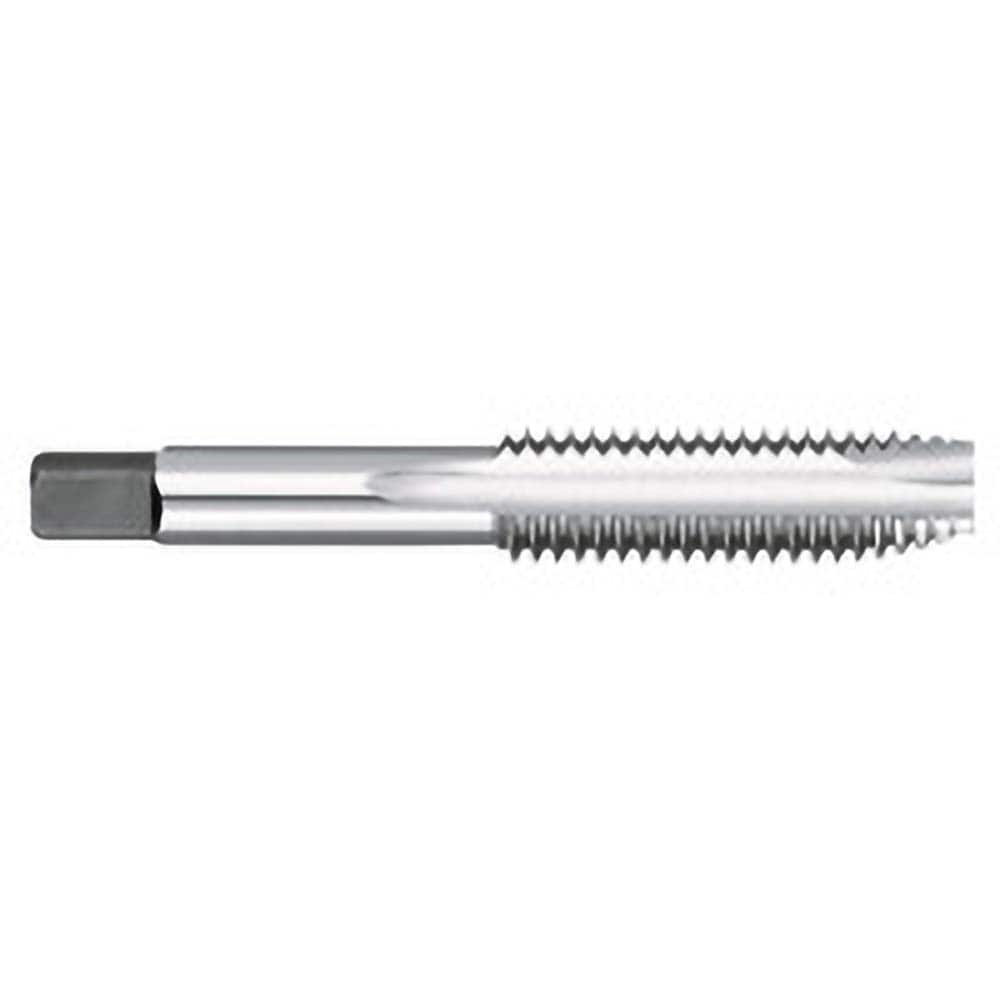

Titan USA - Spiral Point Taps; Thread Size (mm): M16x2.00 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D7 ; Finish/Coating: Uncoated
Item #: 07974223
Brand: Titan USA
Model #: TT93268
Product Specifications
Spiral Point Taps; Thread Size (mm): M16x2.00 ; Number of Flutes: 3 ; Chamfer: Plug ; Class of Fit: 6H ; Thread Limit: D7 ; Finish/Coating: Uncoated
| Thread Size (mm) | M16x2.00 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D7 |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.8125 |
| Overall Length (Inch) | 3-13/16 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.8125 |
| Thread Length (Inch) | 1-13/16 |
| Series/List | 780 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
| Square Size (Decimal Inch) | 0.3600 |
