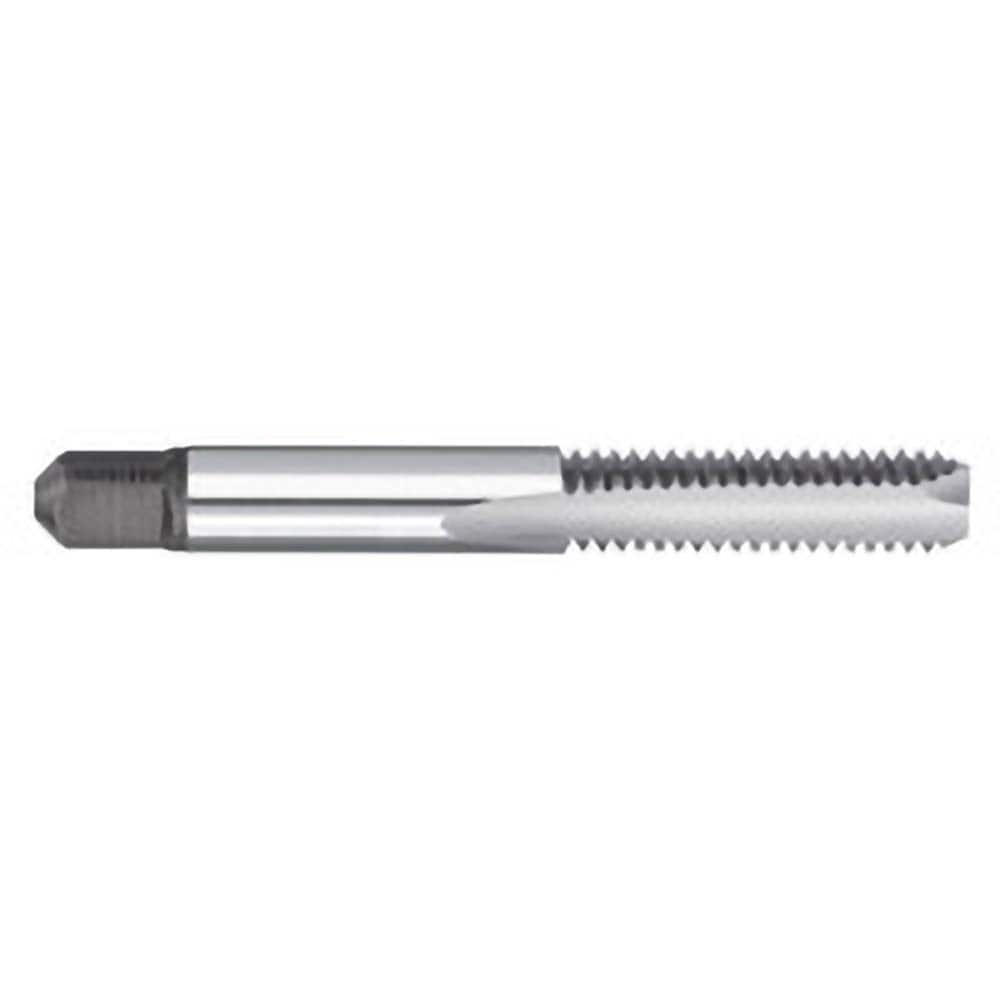

Titan USA - Spiral Point Taps; Thread Size (Inch): 5/16-18 ; Number of Flutes: 2 ; Chamfer: Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: Uncoated
Item #: 07972193
Brand: Titan USA
Model #: TT91259
Product Specifications
Spiral Point Taps; Thread Size (Inch): 5/16-18 ; Number of Flutes: 2 ; Chamfer: Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: Uncoated
| Thread Size (Inch) | 5/16-18 |
| Number of Flutes | 2 |
| Chamfer | Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.7188 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Series/List | 754 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Inch) | 3/8 |
| Square Size (Decimal Inch) | 0.2380 |
