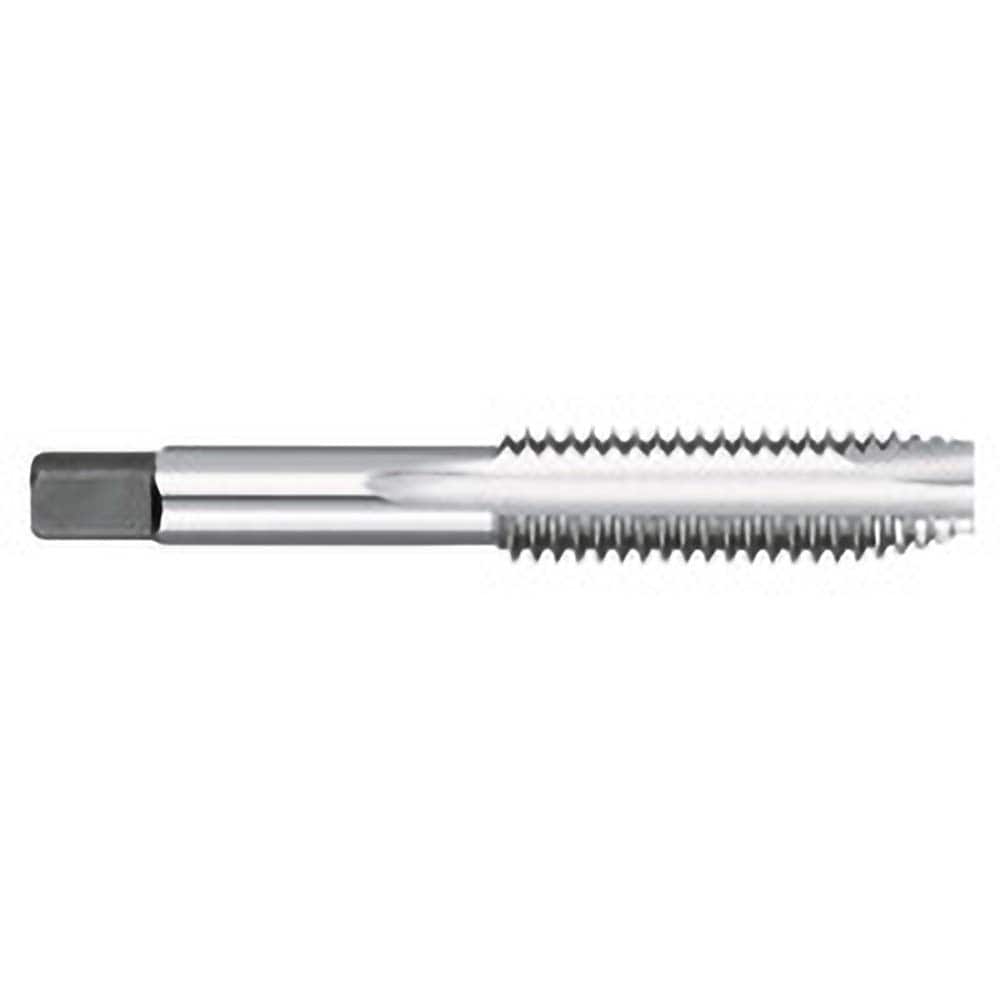

Titan USA - Spiral Point Taps; Thread Size (Inch): #1-72 ; Number of Flutes: 2 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Finish/Coating: Uncoated
Item #: 07972037
Brand: Titan USA
Model #: TT91005
Product Specifications
Spiral Point Taps; Thread Size (Inch): #1-72 ; Number of Flutes: 2 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Finish/Coating: Uncoated
| Thread Size (Inch) | #1-72 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H2 |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 1.6875 |
| Overall Length (Inch) | 1-11/16 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.3750 |
| Thread Length (Inch) | 3/8 |
| Series/List | 750 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
| Square Size (mm) | 2.80 |
